Nestcam V3 2008 overhead and side camera / DSC00087
http://www.KarlGrabe.com
19/02/2008

Previous Home Next



DSC00087

More info at bottom of page

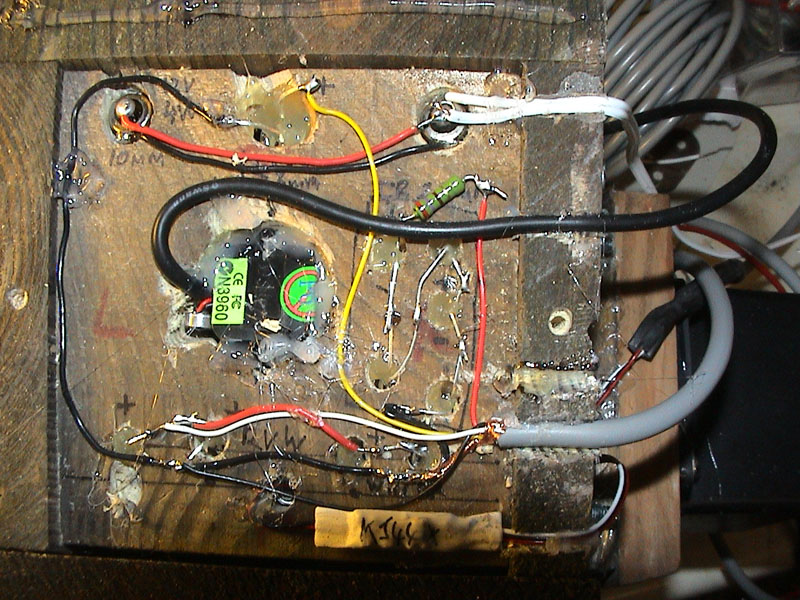

Top Row - Two 12 car panel bulbs (4w). Also a 12volt warm white 4 element LED connected to yellow cable. Camera is a swann (good one!) spycam from Maplin.

Bottom row - 4x 12 White LEDS connected to white cable. Right column 5 Infra LEDS and 270 Ohm resistor connected to Red cable. The LEDS are available from LEDS1.de.

The audio module is from maplin, the microphone is on the left, in a hole drilled for it (you can't see it). The camera already has it's own micropone so this microphone acts as a backup.
